Timber Sleeper Retaining Walls for Perth

H4-treated pine and hardwood sleeper walls for garden terraces and low boundary retaining.

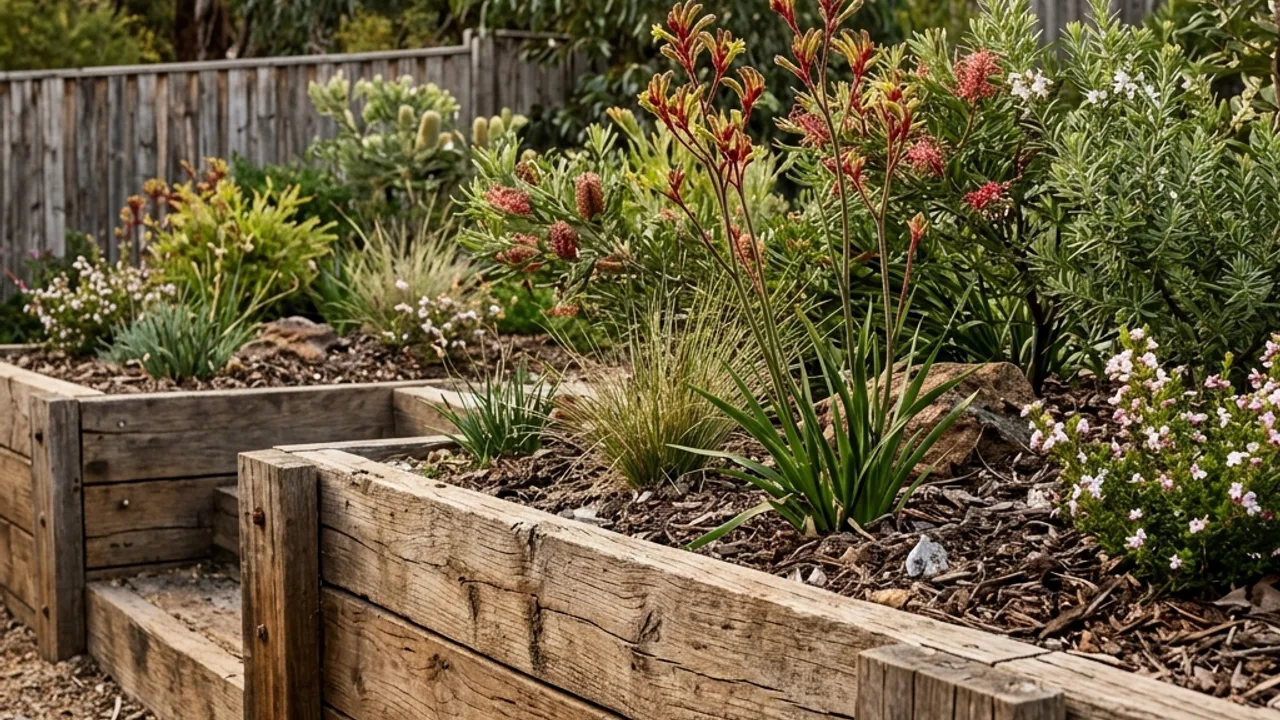

Timber Sleeper Retaining Walls example in Perth

Retaining Walls Perth Homeowners Choose: Timber Sleeper Retaining Walls

Timber sleeper walls are the budget and garden-scale end of the retaining wall spectrum - H4-treated pine or hardwood sleepers for low terraces and boundary edges, honestly priced against a shorter lifespan than limestone or concrete. This is also the one page on the site that talks honestly about DIY: a genuinely low, exempt garden wall is realistic weekend-project territory, and we say so, rather than steering every enquiry toward a paid job it doesn't need.

What's included

H4 treated pine sleeper walls

Hardwood sleeper walls

Terraced garden beds

Our process

01

Scope check

We confirm the wall height and whether it sits under the WA 0.5 m building-permit exemption threshold - most timber sleeper garden walls do.

02

Sleeper choice

H4-treated pine for most budget applications, or hardwood where a longer lifespan or a different look is wanted.

03

Posts and footings

Timber or steel posts set at correct depth and spacing for the retained height.

04

Terracing

Where the job is a garden terrace rather than a single wall, sleepers step down the slope in stages.

H4 treated pine versus hardwood

H4-treated pine is rated for in-ground contact and is the standard, most budget-friendly sleeper choice for Perth garden walls. Hardwood sleepers cost more but generally last longer and give a different, heavier visual weight - worth it if the wall is a feature as much as a function.

Either way, timber sits at the shorter end of the lifespan range compared with limestone, concrete or core-filled block - a fair trade for the lower upfront cost on a low garden application, less so for anything structural or boundary-critical.

When this is genuinely a DIY job

A low garden terrace or edge under WA's 0.5 m building-permit exemption threshold, with no surcharge load and no boundary complication, is the kind of project some owners reasonably tackle themselves. Anything taller, anything carrying a load above it, or anything near a boundary should go through a proper permit and engineering process instead - the honest line between the two is the wall's height and what's sitting above it, not how confident you feel with a shovel.

Why work with our network for timber sleeper retaining walls

Honest about lifespan

Timber sleepers have the shortest service life of the material set - we say that plainly rather than overselling durability.

Honest about DIY

For a genuinely low, exempt garden wall, we tell you when this is realistic to do yourself rather than pushing every enquiry to a paid job.

Right-sized for the job

Garden terracing and low boundary edges are what this material suits - we won't recommend it for a load-bearing or boundary-critical wall.

Timber Sleeper Retaining Walls - frequently asked questions

How much does a timber retaining wall cost in WA?
Timber sleeper walls are generally the most budget-friendly option for low garden and boundary retaining, though exact pricing depends on height, sleeper grade and access. A written quote against your site is the only reliable number.
How long do retaining walls last?
A well-built and well-drained retaining wall in Perth conditions can last 30-50 years or more depending on material. Timber sleeper walls generally have the shortest life; limestone, concrete and core-filled block walls last longer when drainage was done properly at the time of construction.
What is the best material for a retaining wall in Perth?
There is no single best material - it depends on your site. Limestone is Perth's most common choice because it is locally available and suits the coastal sand-belt geology. Concrete post and panel suits taller or engineered walls. Timber sleepers suit garden terracing on a budget.
What is the cheapest type of retaining wall?
For low walls, treated pine timber sleepers are usually the most budget-friendly starting point. For taller or engineered walls, limestone block is typically more cost-effective than concrete post and panel per square metre of wall face.
What causes a retaining wall to collapse?
The most common causes in Perth are inadequate or blocked drainage letting water pressure build up behind the wall, undersized footings for the retained height, a surcharge load added after the wall was built without re-checking the design, and age-related material failure in older timber sleeper walls.

Timber Sleeper Retaining Walls across Perth
